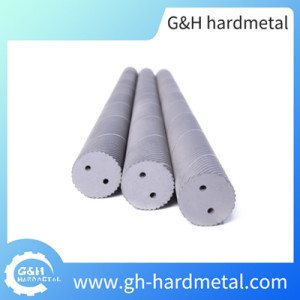

Tungsten Carbide Rods with Two Straight Holes 330mm

Tungsten Carbide Rods with Two Straight Holes 330mm

Tungsten Carbide Rods with Two Straight Holes 330mm
Tungsten Carbide Rods with Two Straight Holes 330mmTungsten Carbide Rods with Two Straight Holes 330mmTungsten Carbide Rods with Two Straight Holes 330mmTungsten Carbide Rods with Two Straight Holes 330mmTungsten Carbide Rods with Two Straight Holes 330mm
CategoriesTungsten Carbide Rods
AlbumView larger image
Descriptionh6 ground carbide rods for making drill
TypeBlank rods or ground h6
SpecificationStandard 1.2~32or Customized
Main GradeGH10 and GH12
ShapeSolid Cylinder carbide
FeatureGood Wear Resistance, HIP Sintering, long lifespan
Material100% Virgin Raw Material
PackingPlastic tube +5 layer outer carton
FOB portZhuzhou
Terms of PaymentL/C, Western Union, MoneyGram, T/T, Paypal
Update Time2019-11-20
Detail Information



Grade Introduction
GradeISOGrain size
(μm)
Cobalt Content
(%)
Hardness
(HRA)
Density
(g/cm3)
T.R.S
(N/mm2)
GH10FK05-K100.4693.514.83800
Ultrafine grain size, with amazing wear resistance. High wear resistance endmill and engraving tools are recommended suitable for cutting PCB and composite material.
GH15FK10-K200.48.59314.523800
Ultrafine grain size,with good wear resistance. High wear resistance endmill and engraving tools are recommended suitable for cutting PCB and plastic.
GH25FK20-K400.41292.514.104200
Ultrafine grain size, higher Co content, with excellent hardness and toughness. Endmill and reamer are recommended.
Excellent performance for finishing. Especially suitable for cutting steel  ( HRC: 45-55 ) ,AI alloy and Ti alloy.
GH6AK151.06.092.514.952450
Drill, endmill and burr are recommended. Especially suitable for cutting
non-ferrous  metal and graphite(coating is needed).
GH20K20-K400.810.391.714.403500
Drill and endmill are recommended. Suitable for cutting general steel(HRC<48),grey cast iron, stainless steel and heat resistant alloy.
GH10.2YL10.20.610.292.314.303800
Drill and endmill are recommended. Especially suitable for cutting stainless steel, heat resistant alloy, cast iron.

øDTol.of Length
(+0~+5)
ødTKøPitch ( ±0.5°)a
PTol.
33300.401.7016.32-0.32+0.330.15
43300.602.2021.77-0.43+0.450.15
53300.702.6027.21-0.54+0.560.15
63300.702.6032.65-0.65+0.670.15
73301.003.7038.09-0.76+0.780.15
83301.004.0043.53-0.86+0.890.15
93301.404.8048.97-0.97+1.000.20
103301.404.8054.41-1.08+1.110.20
113301.405.3059.86-1.19+1.220.30
123301.406.2565.30-1.30+1.340.30
133301.756.5070.74-1.40+1.450.37
143301.757.1076.18-1.51+1.560.40
153301.757.7081.62-1.62+1.670.40
163301.758.3087.06-1.73+1.780.40
173301.758.9092.50-1.84+1.890.45
183302.009.5597.95-1.94+2.000.50
193302.0010.10103.39-2.05+2.120.50
203302.0010.40108.83-2.16+2.230.50
213302.0011.15114.27-2.27+2.340.50
223302.0011.60119.71-2.38+2.450.50
233302.0012.20125.15-2.48+2.560.50
243302.0012.80130.59-2.59+2.670.50
253302.0013.30136.03-2.70+2.780.50

                                                                                                                                           Unit(mm)

GH
Standard
Unground  ØD(mm)Ground  ØD(mm)
RangeTol.RangeTol.
3≤øD≤6+0.60 ~+1.003≤øD≤25h6
6<øD≤24+0.70 ~+1.10
øD=25+0.80 ~+1.20
Ød (mm)TKø (mm)
RangeTol.RangeTol.
0.40≤ød≤0.90±0.10TKø≤4.00+0~-0.40
0.90<ød≤1.70±0.154.00+0~-0.60
ød=1.75±0.205.00+0~-0.80
ød=2.00±0.2510.10+0~-1.00

øDTol.of Length
(+0~+5)
ødTKøPitch ( ±0.5°)a
PTol.
63300.502.2022.46-0.39+0.400.15
83300.652.7029.95-0.53+0.540.15
103300.803.5037.44-0.66+0.670.20
123300.904.2044.93-0.79+0.800.30
143301.004.7052.42-0.92+0.940.40
163301.205.5059.90-1.05+1.070.40
183301.406.3067.39-1.18+1.210.50
203301.507.1074.88-1.31+1.340.50

                                                                                                                                           Unit(mm)

GH
Standard
Unground  ØD(mm)Ground  ØD(mm)
RangeTol.RangeTol.
6≤øD≤20+1.10 ~+1.506≤øD≤20h6
Ød (mm)TKø (mm)
RangeTol.RangeTol.
0.40≤ød≤0.60±0.10TKø≤2.20+0~-0.40
0.60<ød≤0.90±0.152.20+0~-0.60
0.90<ød≤1.20±0.202.70+0~-0.80
1.20<ød≤1.50±0.25TKø=7.10+0~-1.00



 Delivery time

For samples: 5-7 days
For formal orders:10 -15 days


Payment
T/T, Western Union, PayPal, Money Gram, etc.
Payment≤1000 dollars, 100% in advance. Payment≥10000 dollars, 30% T/T in advance ,balance before shipment.

Packing
Standard carton

Shipment
DHL, FedEx, TNT, UPS, EMS, etc.

Any port in China.
