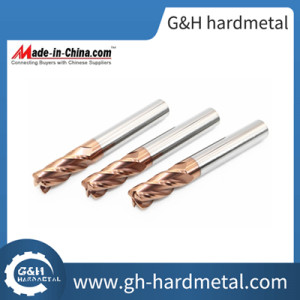

2/4 Flute Corner Radius Carbide End Mill for Wood or Metal Cutting

2/4 Flute Corner Radius Carbide End Mill for Wood or Metal Cutting

2/4 Flute Corner Radius Carbide End Mill for Wood or Metal Cutting
2/4 Flute Corner Radius Carbide End Mill for Wood or Metal Cutting2/4 Flute Corner Radius Carbide End Mill for Wood or Metal Cutting2/4 Flute Corner Radius Carbide End Mill for Wood or Metal Cutting2/4 Flute Corner Radius Carbide End Mill for Wood or Metal Cutting2/4 Flute Corner Radius Carbide End Mill for Wood or Metal Cutting
CategoriesCarbide Endmills & Drills
AlbumView larger image
Suitable forCast Iron, Carbon Steel, Mould Steel
Cutting FormFlat, Ball Nose, Corner Radius, Roughing
Work PieceHRC 45, 55, 60, 65
End Mill Flute DiameterD0.5mm-D25mm, Customized
Unit PriceUS $ 1.98-2.18 / piece
FOB portAny port in China.
Terms of PaymentT/T, Paypal
Update Time2019-11-15
Detail Information





Standard Sizes:

The following Specification for your refer, We also provide the OEM or ODM service.

Cutter DiameterFlute LengthOver lengthCorner radiusShank DiameterFlutes
Φ14500.1Φ42
Φ1.54500.1Φ42
Φ24500.1Φ42
Φ2.55500.1Φ42
Φ36500.1Φ42
Φ3.56500.1Φ42
Φ4850/75/1000.2Φ42/4
Φ51050/75/1000.2Φ52/4
Φ61250/75/100/1500.3Φ62/4
Φ81660/75/100/1500.4Φ82/4
Φ102075/100/1500.5Φ102/4/6
Φ122475/100/1500.6Φ122/4/6
Φ142880/100/1500.7Φ142/4/6
Φ1632100/1500.8Φ162/4/6/8
Φ1836100/1500.9Φ182/4/6/8
Φ2040100/1501.0Φ202/4/6/8

End mill working parameters

GradeHRC of end millCorresponding CoatingMaterials to be cut
GH10HRC45AITiNFor Cutting the materials under HRC38
GH12HRC55TiXCOFor Cutting the materials under HRC50
GH40HRC60TiSINFor Cutting the materials under HRC55
GH41HRC65nACoFor Cutting the materials under HRC63

Coating

ItemAlTiNTiAINTiSiNnACo
Hardness(HV)3200280036004000
Thickness(UM)2.5-32.5-333
Oxidation Temp(°)90090010001200
Friction Coefficient0.30.30.450.4
ColorBlackVioletCopperBlue






Delivery time
For samples: 3 - 5 days
For formal orders:7 - 10 days


Payment
T/T, Western Union, PayPal, Money Gram, etc.
Payment≤1000 dollars, 100% in advance. Payment≥10000 dollars, 30% T/T in advance ,balance before shipment.

Packing
Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group

Shipment
DHL, FedEx, TNT, UPS, EMS, etc.
Any port in China.
